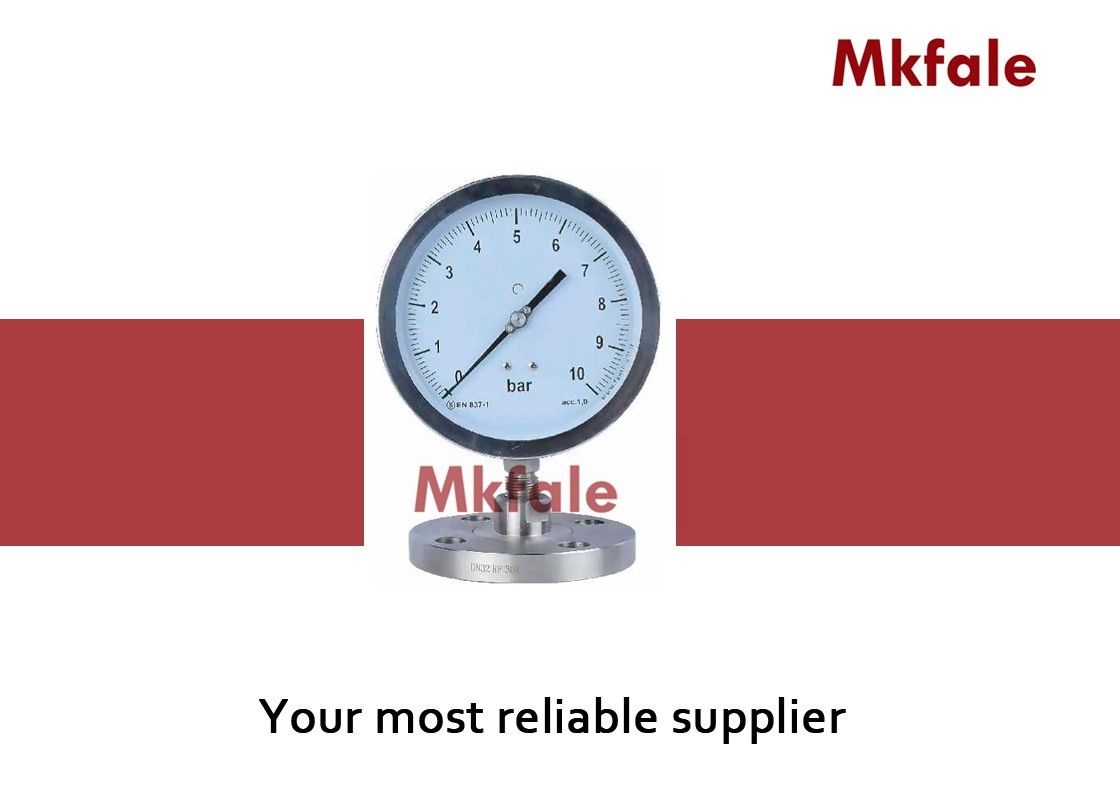

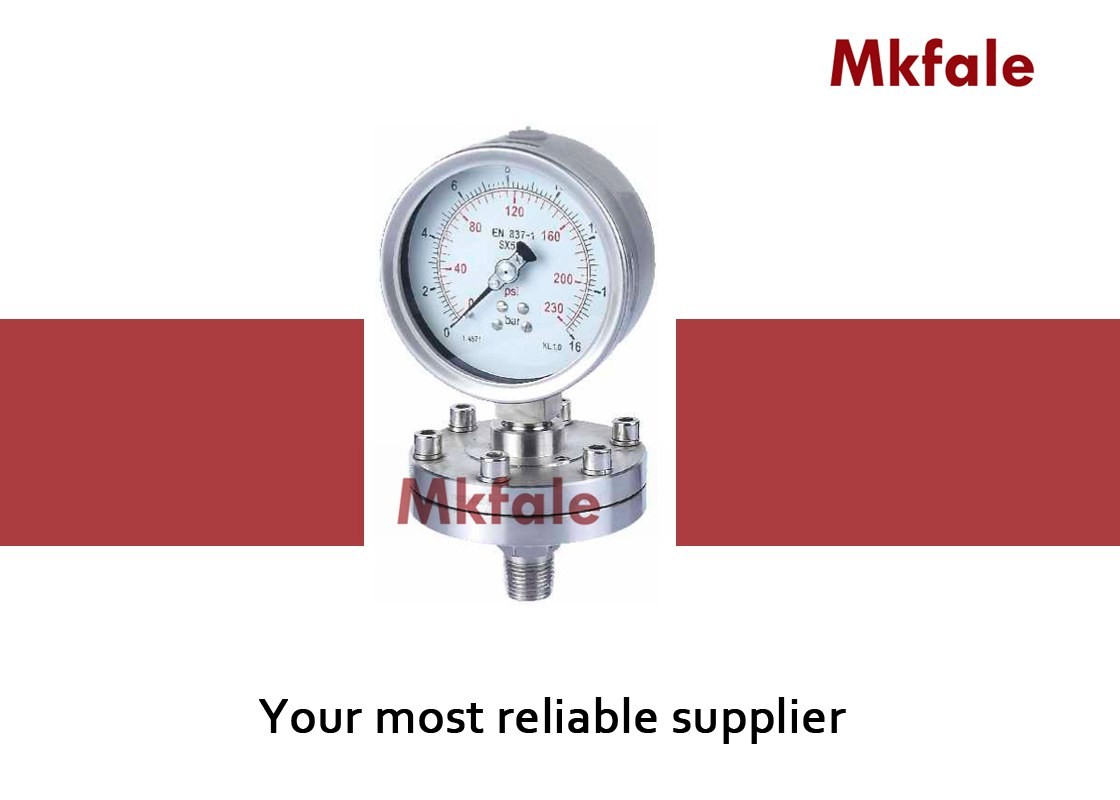

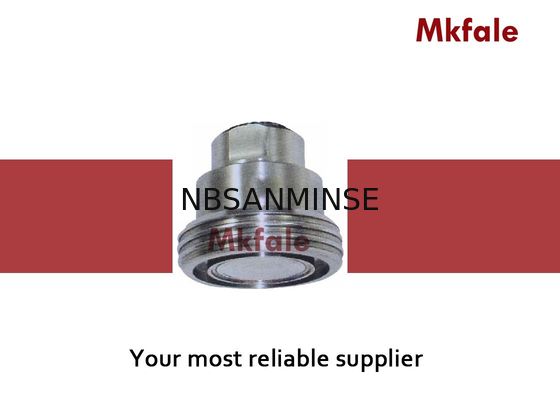

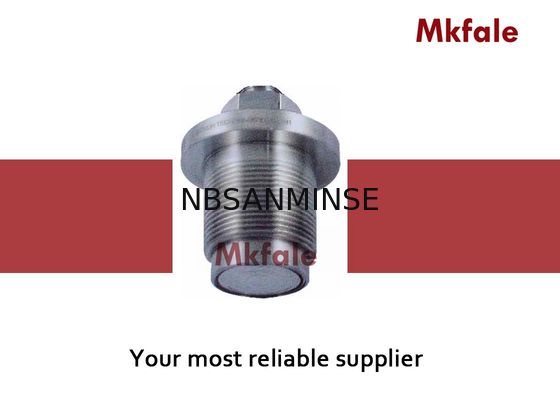

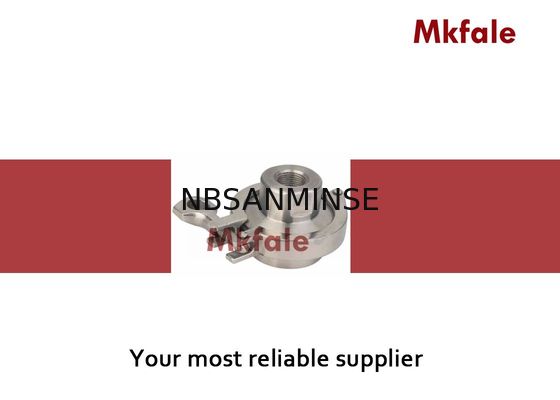

SMPD Sanitary Liquid Pressure Gauge Diaphragm Seal Pressure Gauge Double Laser Welding

Product Description

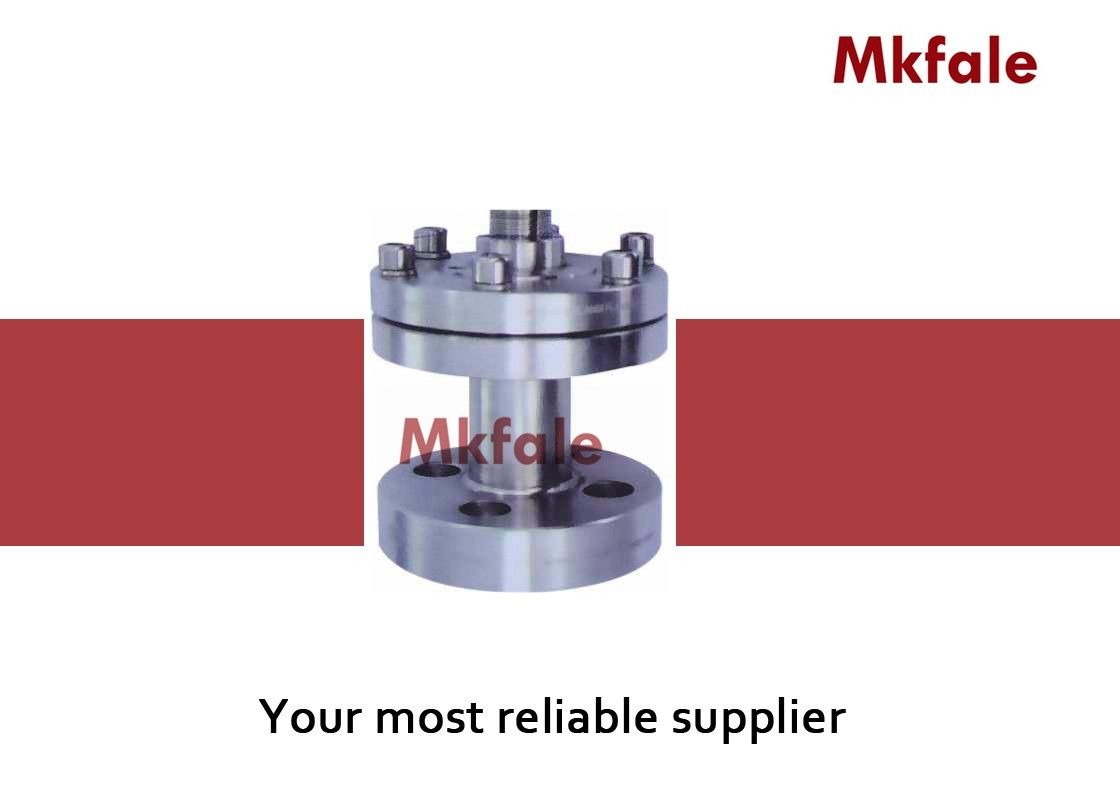

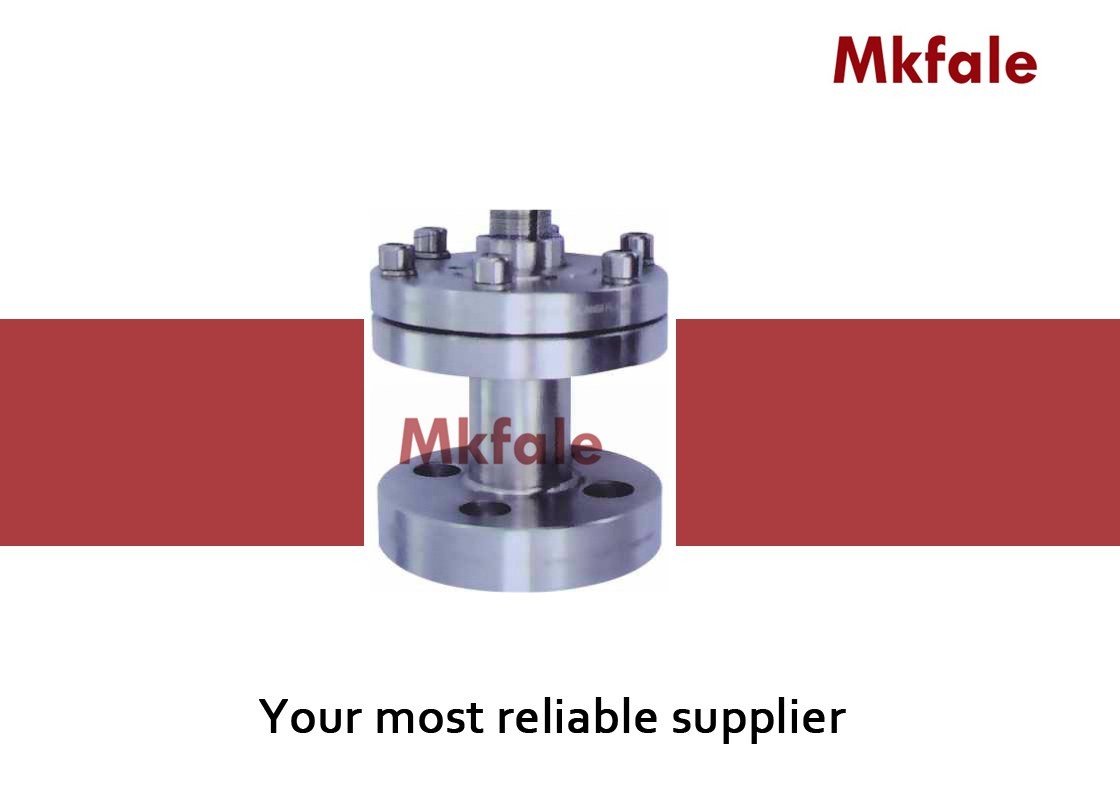

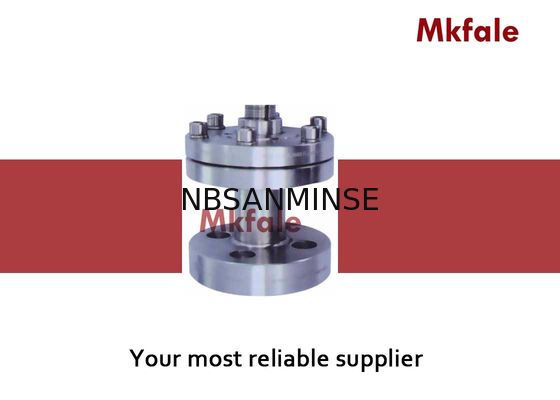

SMPD Series Diaphragm Seal Pressure Gauge Double Laser Welding Diaphragm Design For Sanitary Type​

Technical Specification Table

Features :

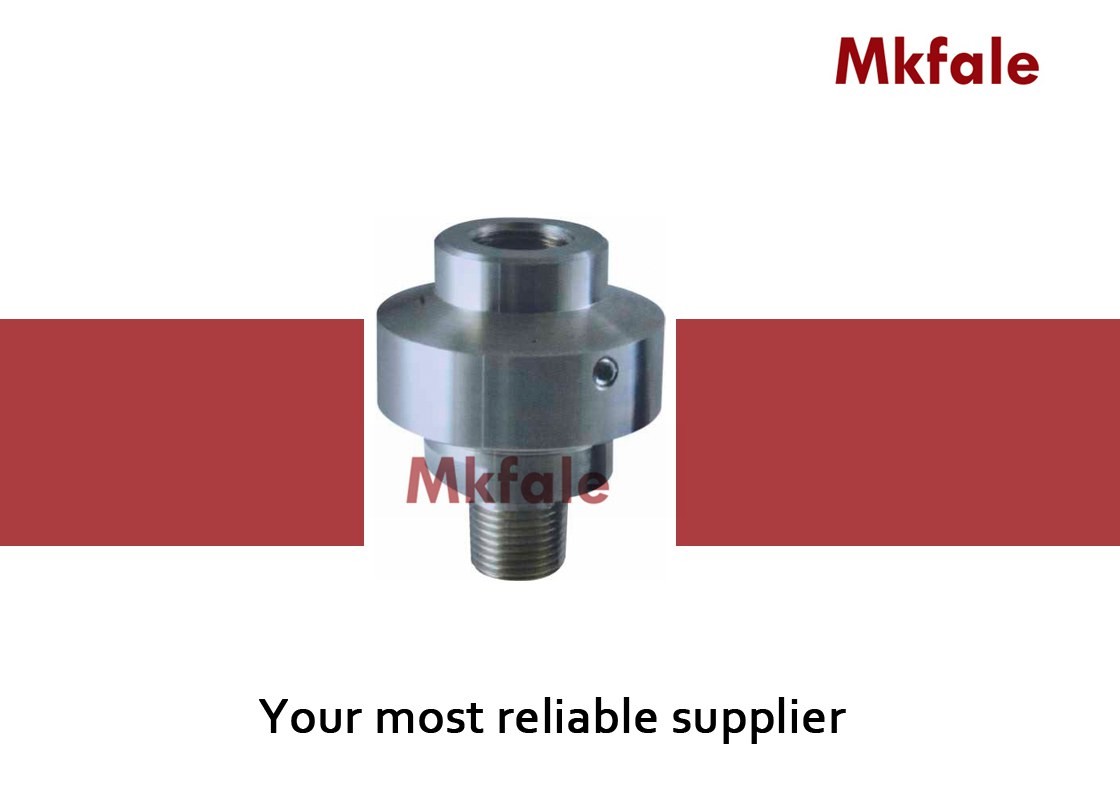

Direct theaded processing type

Applicable with most measuring instruments

Double laser welding diaphragm design

Wide range corrosive applicaions

Stainless steel wetted partsd with options

Various diaphragm materials selection

Technical Specification

Model and pressure configuration

Pressure : 0 .. 1 bar to 400 bar

Vacuum : - 1 .. 0 bar

Compound : - 1 .. 24bar

Instrument / Process Connection Size

G 1 / 2 or NPT , other connection size available

Working temperature range

Working temperature - 40 ° .. + 150 ℃

Please refer to filling selection table

Optional Accessories

Stainless steel armoured capillary , max . 15m

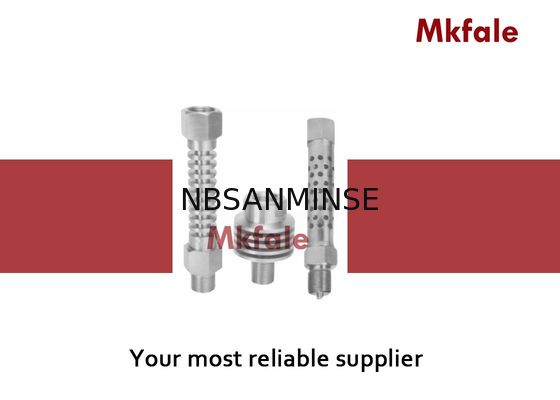

Cooling tower C1 .. C3 ( T ＞ 100 ℃ )

Material

Upper and lower body SS 316 ( Standard ) or SS316L

Diaphragm

SS 316L ( Standard ) , * Optional Tiannium , Monel ,

Hastelloy , Tantalm , or others

Sealing ring / gasket

PTFE / Viton seal * Optional Nirtile , Rubber , Fluoroplastic

Fastening Screw SS 304

Diaphragm filling Standard Silicone oil

Why choose us

1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .

3: Customize according to your special request .
4: Provide free products information .
5: Reliable quality assured and active after-sell service

FAQ

Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
