VT Series High Frequency Pneumatic Solenoid Valve 1 4 Inch
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Minimum Order Quantity : | 20 | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice | Delivery Time : | Negotiation |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | Negotiation |
| Place of Origin: | China | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | 3A110 3A210 4A210 4A110 |
|
Detail Information |
|||
| Material: | Aluminum Alloy | Temp Of Media: | Normal Temperature |
|---|---|---|---|
| Thread Type: | G | Power: | Pneumatic |
| Structure: | 2way 3 Position ,2way 5 Position | Pressure: | Low Pressure 0.85MPA |
| Port Size: | M5,1/8,1/4 | Temperature Of Media: | -5-60C |
| Highlight: | pneumatic air valve,pneumatic electric valve |
||
Product Description

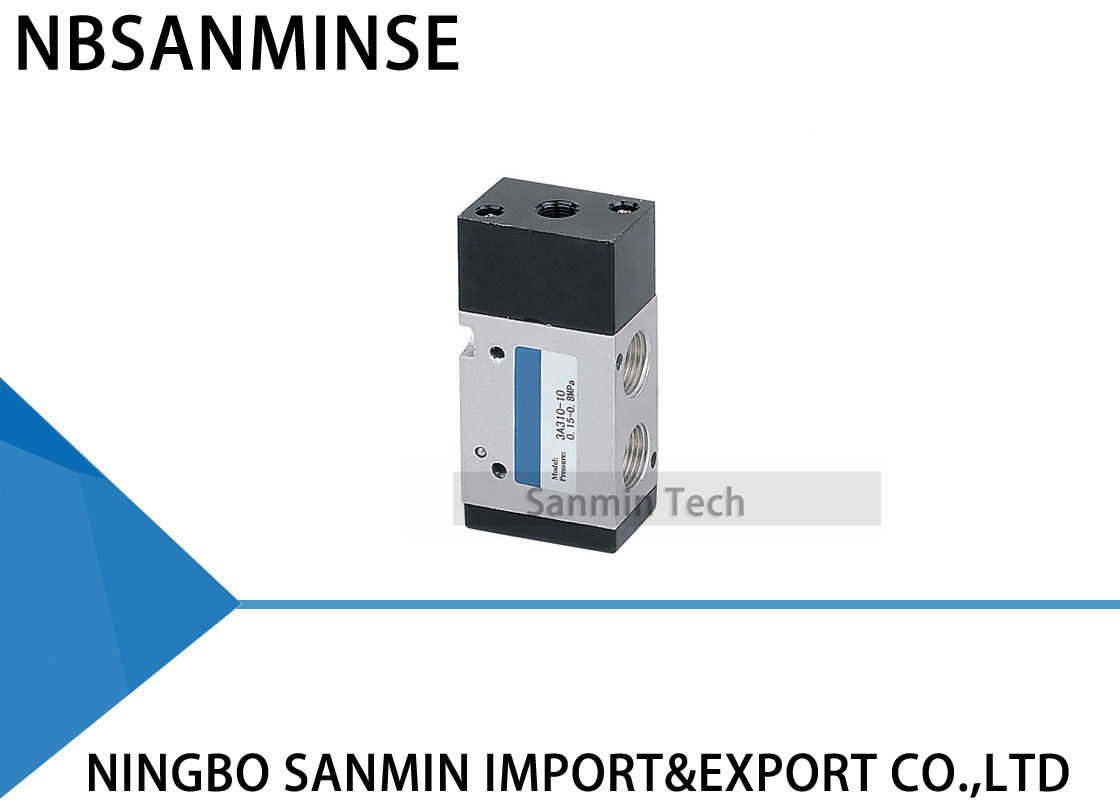

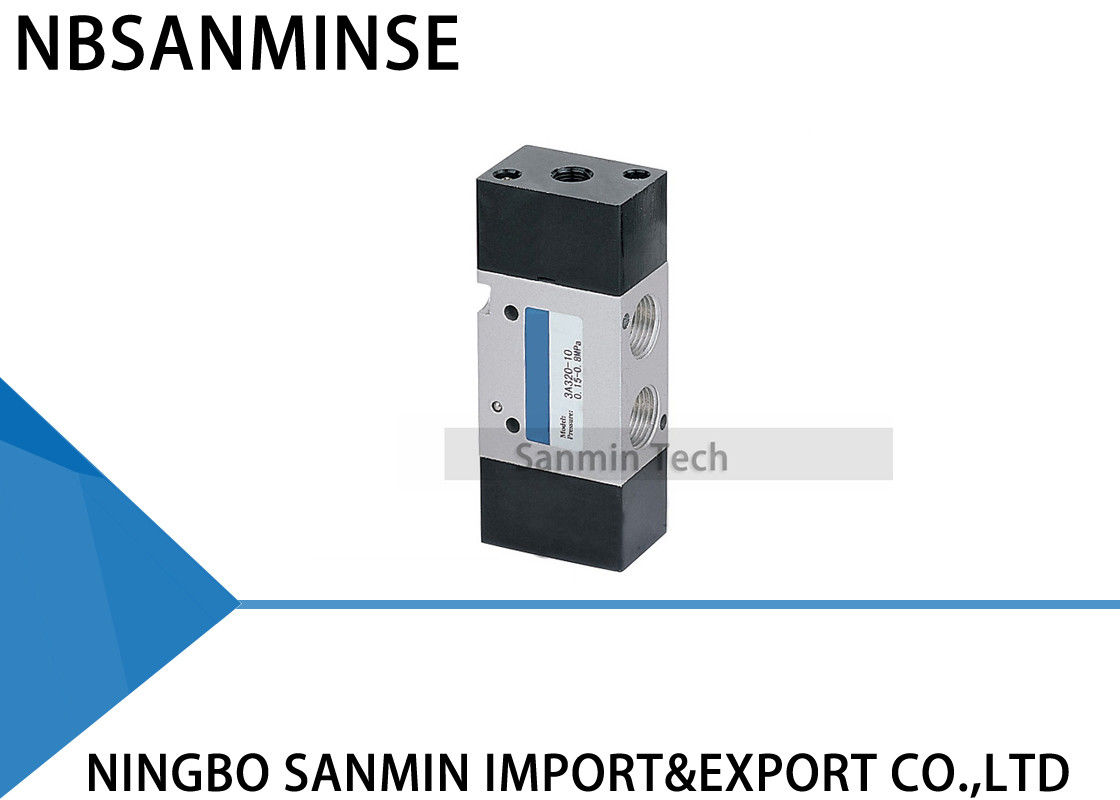

NBSANMINSE 3A Air Pneumatic Control Valve AirTAC Type Solenoid Valve Electro Valve
|
A number of pass
|
Two position three-way
|
|
Working medium
|
40 Micron Filtered Air
|
|
Action mode
|
Internally pllot-actuated
|
|
The use of pressure
|
0.15~0.8MPa
|
|
Max. poof pressure
|
1.2MPa
|
|
Working temperature
|
-5~50℃
|
|
Voltage range
|
± 10% of rated voltage
|
|
Insulation& Protection class
|
Class F. IP65
|
|
Connection form
|
Line type or terminal type
|
|
Highest action frequency
|
5 cycle/second
|
|
Shortest excitation time
|
0.05 Second
|
Why choose us
1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: Provide free products information .
4: Reliable quality assured and active after-sell service
5: High quality with competitive price .
FAQ
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
