SM2SB 40B / L Liquid Filled Water Pressure Gauge With Two Screwed Connection
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Minimum Order Quantity : | 20 | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice | Delivery Time : | 5 - 30 Work Days |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | Negotiation |
| Place of Origin: | China | Brand Name: | Mkfale |
|---|---|---|---|
| Model Number: | SMPB86 |
|
Detail Information |
|||
| Accuracy: | 0 . 5 % F S | Measuring Range: | 0 ~ 5 M To 0 ~ 1500m |
|---|---|---|---|
| Linearity: | Superior To 0 . 2 % F S | Temperature Drift: | ＜ Superior To ± 0 . 03 % F S / ℃ |
| Stability: | Superior To 0 . 5 % F S For 1 Year | Response Time: | 10ms |
| Highlight: | stainless steel pressure gauge,industrial pressure gauge |
||
Product Description

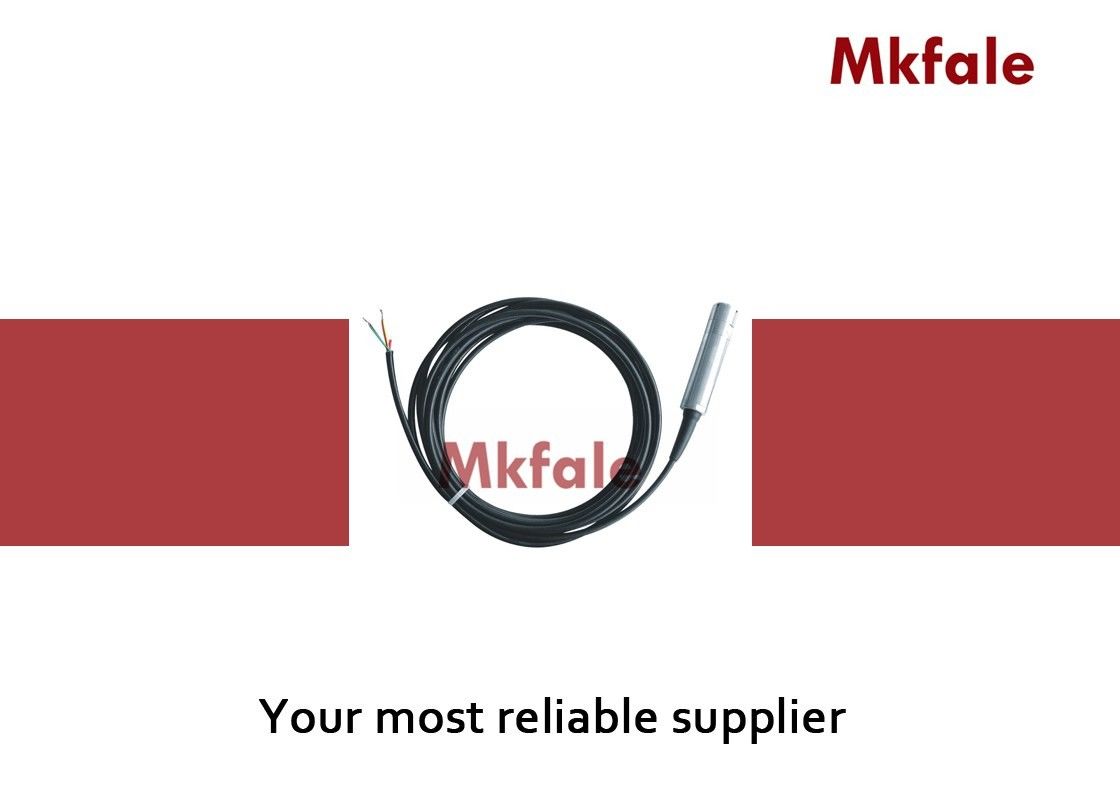

Dust Proof Submersible Level Transmitter With 316L Stainless Steel Diaphragm Material
Technical Specification Table
Installation position :
Direct into the bottom of the liquid
Housing Material :
304 Stainless Steel or 316 Stainless Steel
Diaphragm material :
316L Stainless Steel
Breathing Cable Material :
Polythene or PTFE
Weight :
Stainless Steel Pipe ( G1 ) : About 300g
Breathing cable ( G2 ) : About 65g / m
Junction box ( G3 ) : Above
Gross Weight ( G ) : G = G1 + G2 * Length ( m ) + G3
Power Consume :
＜ 5W ( 24VDC )
| Accuracy | 0 . 5 % F S |
| Measuring range | 0 ~ 5 m to 0 ~ 1500m |
| Linearity | Superior to 0 . 2 % F S |
| Temperature drift | ＜ superior to ± 0 . 03 % F S / ℃ |
| Stability | superior to 0 . 5 % F S for 1 year |
| Response time | 10ms |
| Power supply | 12 to 36VDC |
| Output | 4 ~ 20mADC |
| Load resistance | 0 ~ 600 Ω |
| Liquid Temp | - 10 ~ 60 ℃ |
| Compensated temp | - 10 ~ 60 ℃ |
| Storage temp | - 45 ~ 125 ℃ |
