Impact Resistance Hydraulic Accumulator Nitrogen Charging Valve Filling Air

Minimum Order Quantity :	20	Price :	Negotiation
Packaging Details :	Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice	Delivery Time :	Negotiation
Payment Terms :	L/C, T/T, Western Union	Supply Ability :	Negotiation

Place of Origin:	China	Brand Name:	NBSANMINSE
Model Number:	CQJ 16 / 25 / 40

Detail Information
Pressure:	10, 20, 31.5MPa	Air:	Nitrogen
Type:	Hydraulic	Name:	Nitrogen Charging Tools
National Standard:	Standard Connector M14 * 1.5	Accumulator:	Bladder Hydraulic Accumulator
Highlight:	diaphragm type accumulator , hydraulic piston accumulator

Product Description

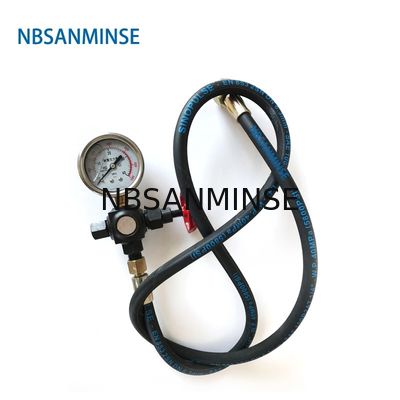

CQJ 16 / 25 / 40 Nitrogen Charging Tools Filling Air For Bladder Hydraulic Accumulator High pressure 10 20 31.5MPa

Hydraulic item pressure range is 0-300bar(30Mpa)

Please don't work more than indicated pressure range.

Charging Tool is an indispensable special tool to charge ,supply, adjust pressure and test charging pressure . Its merits are made up of compact structure .High – reliability , high – pressure and impact resistance . Convenience .To are we have two type charging tool CQJ

1. Charging tools are designed to charge , test gas pressure or change the existed pre – charge pressure .

2. When the max pressure of accumulator charged is less than max pressure of nitrogen cylinder , relief valve is used to charge accumulator .

3. When the max pressure of accumulator charged is more than max pressure of nitrogen cylinder , nitrogen charging vehicle is used to charge accumulator.

4. Note : After charging , the connector between nitrogen cylinder and accumulator should be closed . and then open the bleed valve of charging tool to exhaust completely the gas in hose , finally , unload the charging tool .

Impact Resistance Hydraulic Accumulator Nitrogen Charging Valve Filling Air 0

Impact Resistance Hydraulic Accumulator Nitrogen Charging Valve Filling Air 1

Impact Resistance Hydraulic Accumulator Nitrogen Charging Valve Filling Air 2
