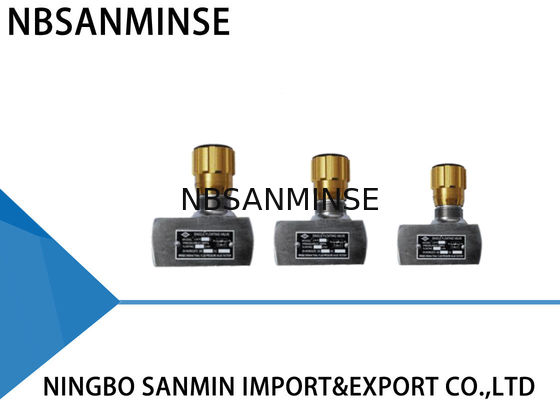

Tubular One Way Throttle Valve LA L AL Hydraulic Industry

Minimum Order Quantity :	1pc	Packaging Details :	Box
Delivery Time :	5-30workdays	Payment Terms :	Western Union, L/C, D/P, T/T，PayPal
Supply Ability :	10000000

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Certification:	ISO	Model Number:	LA/L/AL

Detail Information
Material:	Carbon Steel	Pressure:	31.5MPA（315Bar）
Port Size:	NPT/G1/8,1/4,3/8,1/2,3/4,1	Temperature:	-20-+80C
Highlight:	Tubular One Way Throttle Valve , One Way Throttle Hydraulic Ball Valve , 31.5 MPA One Way Throttle Valve

Product Description

Tubular One-Way Throttle Valve LA,L,AL Hydraulic Industry Valve

AL	Thread		DN(mm)	PN(bar)
AL	M	G	DN(mm)	PN(bar)
LA/L/AL-06	M10X1	NPT/G1/8	06	315
LA/L/AL-08	M14X1.5	NPT/G1/4	08	315
LA/L/AL-10	M18X1.5	NPT/G3/8	10	315
LA/L/AL-16	M22X1.5	NPT/G1/2	16	315
LA/L/AL-20	M27X2	NPT/G3/4	20	315
LA/L/AL-25	M33X2	NPT/G1	25	315
LA/L/AL-30	M42X2	NPT/G1 1/4	30	315
LA/L/AL-40	M46X2	NPT/G1 1/2	40	315
