Special OEM Design Heavy Duty Pneumatic Cylinder For Machine Parts
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Minimum Order Quantity : | 20 | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice | Delivery Time : | Negotiation |
| Supply Ability : | Negotiation |
| Place of Origin: | NINGBO | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | CY3R CY3B |
|
Detail Information |
|||
| Bore Size: | 6 , 10 , 15 , 20 , 25 , 32 , 40 , 50 , 63 | Fluid: | Air |
|---|---|---|---|
| Pressure: | 0.7MPa | Temperature: | - 10 To 60 ℃ |
| Piston Speed: | 50 To 500 Mm / S | Cushion: | Rubber Bumper |
| Highlight: | smc locking cylinder,guided pneumatic cylinder |
||
Product Description

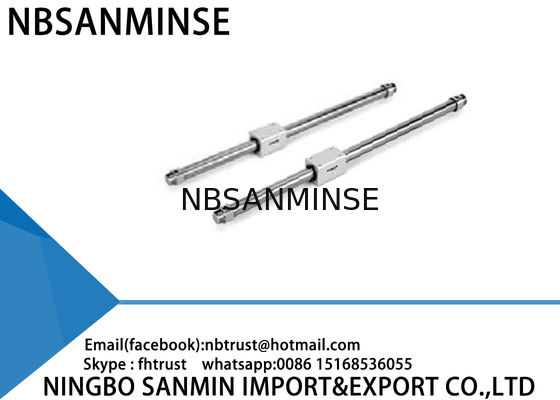

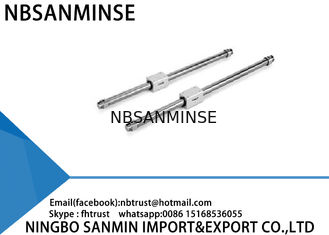

CY3R CY3B SMC Pneumatic Cylinder Direct Mount Type ISO9001 Certification
1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping.
3: High quality with competitive price.
4: Sample order & small quantity order is acceptable.
5: Customize according to your special request.
6: Provide free products information.
7: Reliable quality assured and active after-sell service
8: One year quality guarantee
Specifications
| Bore Szie | 6 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 63 |
| Fluid | Air | ||||||||
| Proof pressure | 1.05 MPa | ||||||||
| Max . operating pressure | 0.7 MPa | ||||||||
| Min . operating pressure | 0.16 | 0.16 | 0.16 | 0.16 | 0.15 | 0.14 | 0.12 | 0.12 | 0.12 |
| Ambient and fluid temperature | - 10 to 60 ℃ ( No freezing ) | ||||||||
| Piston speed | 50 to 500 mm / s | ||||||||
| Cushion | Rubber bumper | ||||||||
| Lubrication | Not Required (Non – lube) | ||||||||
| Mounting orientation | Horizontal , Inclined , Vertical | ||||||||
| Mounting nut (2 pcs.) | Standard Equipment (accessory) | ||||||||
| Magnet holding force (N) | 19.6 | 53.9 | 137 | 231 | 363 | 588 | 922 | 1471 | 2256 |
Weight ( kg)
| Bore size (mm) | 6 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 63 |
| Basic weight (at 0 st) | 0.052 | 0.08 | 0.275 | 0.351 | 0.672 | 1.287 | 2.07 | 3.2 | 5.3 |
| Additional weight per 50 mm of stroke | 0.004 | 0.014 | 0.015 | 0.02 | 0.023 | 0.033 | 0.04 | 0.077 | 0.096 |
Our products are high quality with 12 month guarantee ,and support paypal payment.
