VT Series High Frequency Pneumatic Solenoid Valve 1 4 Inch
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Minimum Order Quantity : | 20 | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Plastic Bags , Boxes , Carton , Pallet or As Customer Advice | Delivery Time : | Negotiation |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | Negotiation |
| Place of Origin: | NINGBO | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | 4N400 YPC Type |
|
Detail Information |
|||
| Medium: | Air | Action: | Internal Pilot |
|---|---|---|---|
| Pressure: | 0 . 15 ~ 0 . 8 MPa | Temperature: | - 5 ~ 60 ℃ |
| Port Size: | 1 / 2 " | Thread: | G / NPT |
| Position: | 5 / 2 , 5 / 2 | Voltage: | DC24V , AC24V , AC220V , Etc |
| Highlight: | pneumatic air valve,pneumatic directional control valve |
||
Product Description

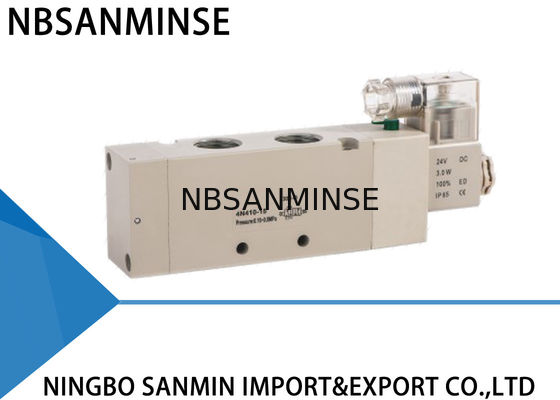

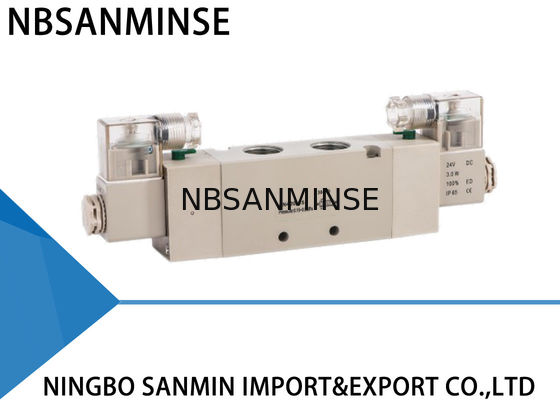

Single / Double Coil Solenoid Valve , Pneumatic Air Valve 4N400 4V400 Series
4N410 - 15 , 4N420 - 15 , 4N430C - 15 , 4N430E - 15 , 4N430P - 15 , 3NV410 - 15 ,
3NV420 - 15
Specification
| Model | 4N410 - 15 | 4N430C - 15 / 4N430E - 15 |
| 4N420 - 15 | 4N430P - 15 | |
| Position and Way No. | Two- Position Five- Way | Three- Position Five- Way |
| Effective section area | 50mm² ( CV = 2. 79 ) | 30mm² ( CV = 1. 68 ) |
| Model | 3NV410 - 15 / 3NV420 - 15 | |
| Position and Way No. | Two – position Three - way | |
| Effective Section Area | 50mm² ( CV = 2. 79 ) | |
| Port Size | Air Inlet = Air Outlet = Exhaust = G1/ 2 ” | |
| Working Medium | 40 Micron Filtered Air | |
| Motion Pattern | Inner Guide Type | |
| Working Pressure | 0. 15 ~ 0. 8MPa | |
| Max . pressure Resistance | 1. 2MPa | |
| Temperature | -5 ~ 60 ℃ | |
| Power Consumption | - 15 % ~ + 10 % | |
| Power Consumption | AC: 3. 5VA DC: 3W | |
| Insulation & Protection Class | F Class. IP65 | |
| Wiring Form | Lead Wire Or Connector Type | |
| Highest Action Frequency | 5 Cycle / Sec | |
| Shortest Excitation Time | 0. 05 Second | |
| Life | 20 Million | |
Why choose us
1: High quality with competitive price .
2: Sample order & small quantity order is acceptable .
3: Customize according to your special request .
4: Provide free products information .
5: One year quality guarantee
FAQ
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples for the massive products .
Q: What ' s your business scope ?
A: Our business scope is air cylinder , air source treatment , air solenoid valve , motorize valve , pneumatic valve , quick fitting , etc .
Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days . If you need emergency products , we can speed up the production of the first arrangement .
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any color .
Q: Do you company have specialized technical personnel ?
A: Do you company have specialized technical personnel , they can design the product which the most meet your requirements .
Our products are high quality with 12 month guarantee ,and support paypal payment.
