VRFU Tubular Throttle Hydraulic Pressure Control Valve Carbon Steel
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Minimum Order Quantity : | 20 | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice | Delivery Time : | Negotiation |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | Negotiation |
| Place of Origin: | China | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | KHB ( KBH ) , KHM ( MKH ) |
|
Detail Information |
|||
| Pressure: | High Pressure | Structure: | Two Way |
|---|---|---|---|
| Material: | Stainless Steel | Media: | Oil Water Gas |
| Thread Type: | M , G , LR , SR , PT , NPT | Seal Material: | NBR , FPM |
| Temperature: | -5-65C | ||
| Highlight: | hydraulic pressure control valve,electronic hydraulic control valve |
||
Product Description

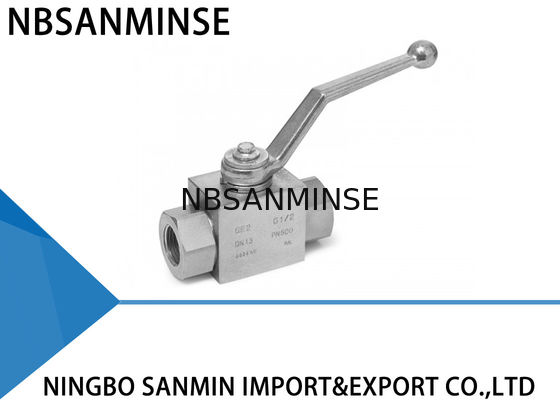

High Pressure Stainless Steel Hydraulic Ball Valve 2 way 1/8" - 2" KBH MKH Series Industry Application for water oil gas
| Model | DN | LW | ‘d1 | i | L | L1 | B | H | ‘h1 | ‘h2 | ‘h3 | SW1 | SW2 |
| KHB-G1/8 | 04 | 06 | G1/8 | 10 | 69 | 35 | 25 | 48 | 13 | 35 | 8 | 09 | 19 |
| KHB-G1/4 | 06 | 06 | G1/4 | 14 | 69 | 35 | 25 | 48 | 13 | 35 | 8 | 09 | 22 |
| KHB-G3/8 | 10 | 10 | G3/8 | 14 | 72 | 42 | 32 | 53 | 17 | 40 | 8 | 09 | 27 |
| KHB-G1/2 | 13 | 12 | G1/2 | 16 | 82 | 47 | 35 | 53 | 17 | 40 | 8 | 09 | 30 |
| KHB-G1/2 | 16 | 15 | G1/2 | 16 | 82 | 47 | 38 | 62 | 19 | 45 | 11 | 12 | 32 |
| KHB-G3/4 | 20 | 20 | G3/4 | 18 | 95 | 60 | 48 | 75 | 24.5 | 57 | 11 | 14 | 41 |
| KHB-G1 | 25 | 25 | G1 | 20.5 | 113 | 65 | 57 | 82 | 28.5 | 64 | 11 | 14 | 50 |
| KHB-G1 - 1/4 | 32 | 30 | G1.1/4 | 22 | 110 | 84 | 75 | 102.7 | 37.5 | 84.2 | 12 | 17 | 60 |
| KHB-G1 - 1/2 | 40 | 38 | G1.1/2 | 24 | 130 | 91 | 85 | 113.7 | 42.5 | 95.2 | 12 | 17 | 70 |
| KHB - G2 | 50 | 48 | G2 | 26 | 140 | 100 | 105 | 131.2 | 52.5 | 112.7 | 12 | 17 | 80 |
Specification of carbon steel ball valves (steel ball valve)
1. Part Number: KHB(BKH)
2. Pressure: 500bar (7250psi)
3. Diameter: 4, 6, 10, 13, 20, 25,32 40, 50mm
4. Size: 1/8" ~ 2"
5. Temperature: -25~+100oC (NBR), -30~+170oC (FPM)
6. Material: carbon steel, stainless steel (SS304, SS316, SS316L)
7. Application: Hydraulic oil and water
2 Advantage
1 : Fluid resistance is small
2 : Simple structure, easy to install
3 : Easy to operate, open and close quickly
Why choose us
1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: One year quality guarantee
FAQ
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .
