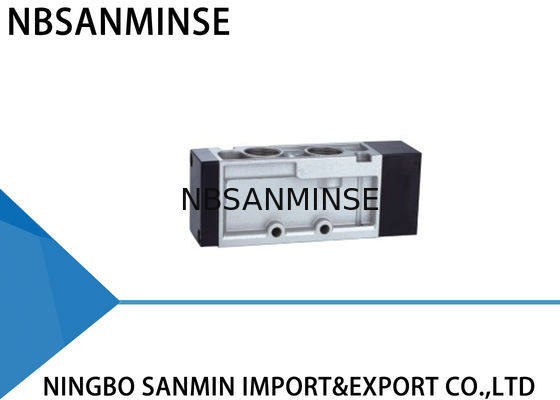

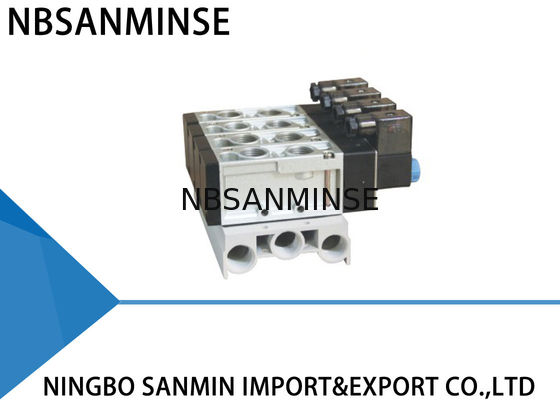

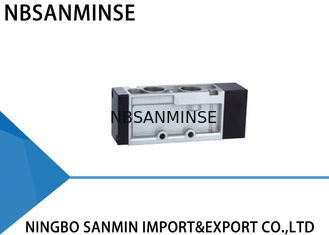

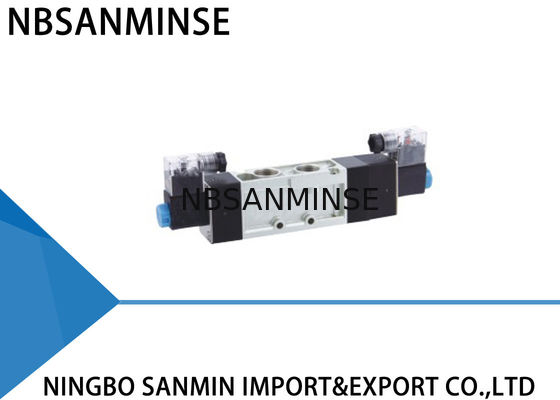

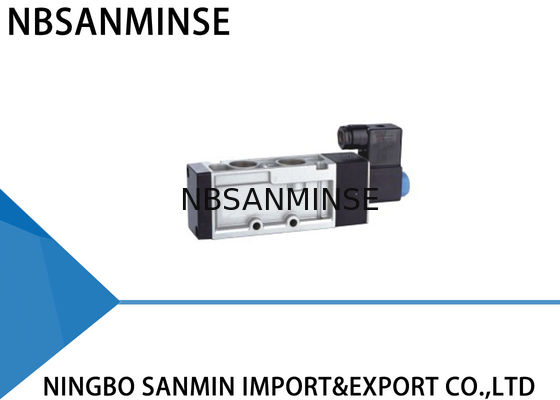

40 Micron Filtered Air Pneumatic Solenoid Valve Five Port G1 / 2 " Port Size

Product Description

STA / STV 540 Series Solenoid Valve , Pneumatic Control Valve Five Port G1 / 2 " Port Size







Model :

STV541 – 15 STV542 – 15 STV543C – 15 STV543E – 15 STV543P – 15

STA541 – 15 STA542 – 15 STA543C – 15 STA543E – 15 STA543P – 15



Working Medium :

40 Micron Filtered Air



Acting Type :

Internal Pilot Type



Thread Pipe :

Air Inlet = Air Outlet = Air Exhaust 1 / 2 “



The Position Counting :

Two – Position Five Port ,Three – Position Five – Port



Operating Temperature ( ℃ ) :

- 5 ~ 60 ℃



Sectional Area :

50mm² ( Cv=2.79 ) , 30mm² ( Cv=1.67 )



Working Pressure ( MPa ) :

0.15 ~ 0.8 MPa



Max . Pressure Resistance ( MPa ) :

1.2MPa



Protection Class :

IP65



Max . Action Frequency :

3 Cycles / Second



Voltage Range :

- 15 % ~ + 10 %



Shortest Excitation Time :

0 . 05 Second



Ordering Code



ST



Type :

V : Solenoid Valve

A : Pneumatic Control Valve



Specification :

Five Port



Series Code :

4



Coil and Places :

1 : Single - Coil Double - Position

2 : Double - Coil Double - Position

3C : Double - Coil Three - Position Close Type

3E : Double - Coil Three - Position Exhaust Type

3P : Double - Coil Three - Position Pressure Type



Thread Pipe :

15 : G1/2



Standard Voltage

DC12V

DC24V

AC24V 50 / 60Hz

AC110V 50 / 60Hz

AC220V 50 / 60Hz

AC380V 50 / 60 Hz



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve ,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick coupler , etc .



Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection



Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.



Why choose us

1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .

4: Provide free products information .
5: Reliable quality assured and active after-sell service
6: One year quality guarantee
